FROM PIXELS
TO PROOF.

PolyTracing Studio turns images into named geometry, calibrated measurements, repeatable inspections, and audit-ready production records—inside one focused desktop environment.

Explore capabilities Download Demo →
27guided lessons
10+export families
100%offline analysis
MAIN WORKSPACE / 2.2REAL APPLICATION UI

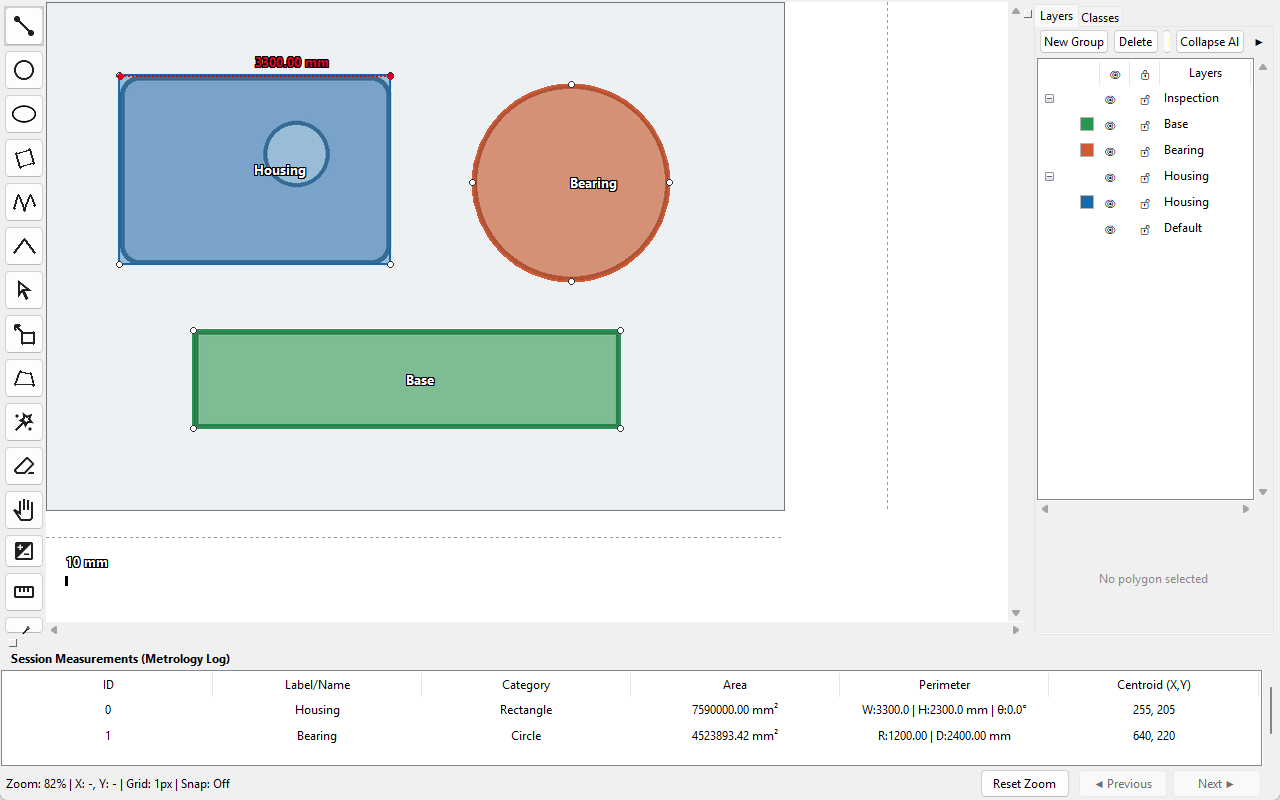

PolyTracing Studio workspace showing measured engineering shapes
BOUNDARY± 0.500 mm
INSPECTION READY
PTS—2.2
STABLE / 01
ONE CONTINUOUS WORKFLOW

The exact contour is only the beginning.

Most annotation tools stop at labels. Most inspection tools begin with expensive metrology hardware. PolyTracing Studio connects the space between them: image-native geometry, engineering intelligence, quality control, and production evidence.

01

Trace

Draw polygons, analytic shapes, B-splines and three-point curves—or let Smart Boundary extract the object for you.

02

Measure

Calibrate images, resolve perspective, recognize engineering geometry and read live physical dimensions.

03

Inspect

Compare every part to a Golden Template with alignment, tolerances, GD&T and deviation overlays.

04

Prove

Ship PDF, CSV and JSON reports, SPC analysis, MES/QMS records and a hash-chained evidence package.

ASSISTED, NEVER OPAQUE

Automation you can see, refine, and trust.

All capabilities
SMART BOUNDARYREAL APPLICATION UI
Smart Boundary preview with confidence and engineering geometry fit
NON-DESTRUCTIVE ANALYSIS

Guide the edge.
Keep the judgment.

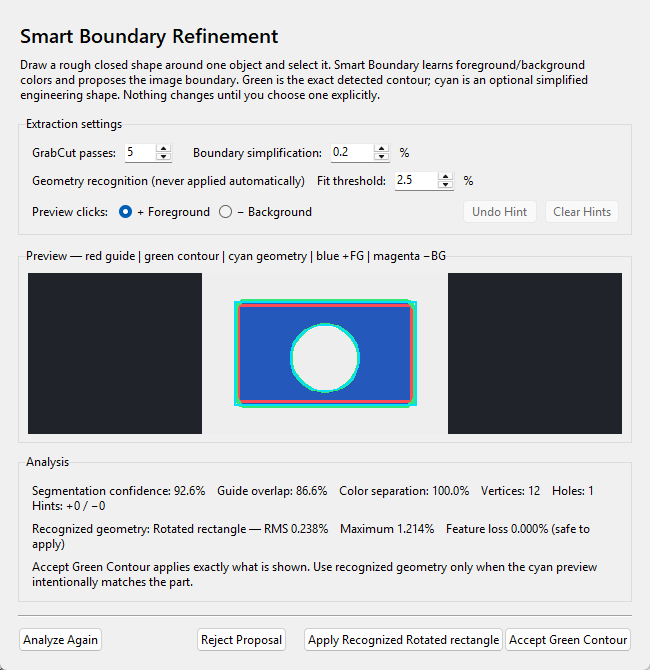

Draw a rough contour. PolyTracing Studio learns foreground and background colors, preserves explicit holes, and proposes the exact detected boundary in green. A separate cyan preview offers engineering geometry only when RMS, maximum error, and feature-loss checks all pass.

  • Interactive GrabCut refinement
  • Topology-aware holes and subtractions
  • Feature-preserving geometry recognition
  • Explicit contour, geometry, or reject actions

INSPECTION TWIN

Turn a known-good part into a repeatable quality gate.

Capture calibrated geometry as a Golden Template, align incoming parts, apply global or per-feature tolerances, and see every pass, fail, missing feature, extra feature, and boundary deviation.

See the inspection stack
GOLDEN TEMPLATE / PASSREAL APPLICATION UI

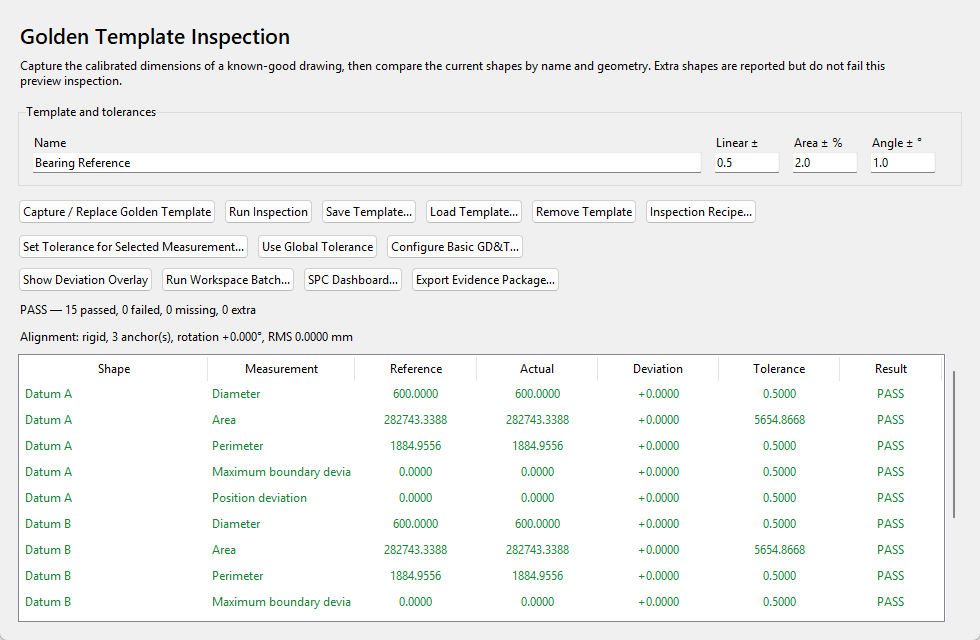

Golden Template Inspection results with pass measurements

EXPLORE THE WORKFLOW

Go directly to the capability behind each result.

Focused entry points into tracing, inspection, and production evidence.

WORKFLOW / 01

Trace a part precisely

Manual precision, Smart Boundary, and engineering recognition.

OPEN CAPABILITY
WORKFLOW / 02

From template to verdict

Alignment, tolerance overrides, deviation overlay, and report.

OPEN CAPABILITY
WORKFLOW / 03

Evidence without spreadsheets

SPC, audit trail, manifest, and MES/QMS exchange.

OPEN CAPABILITY
SPC / CAPABILITYREAL APPLICATION UI
Statistical Process Control dashboard with capability metrics and control chart

BEYOND PASS / FAIL

See the process moving.

Group measurements by feature and metric. Calculate mean, sample standard deviation, three-sigma control limits, specification limits, Cp/Cpk, and deterministic run rules—without an external AI service.

Cp / CpkCapability3σControl limits6 + 8Run rules

START SMALL. KEEP THE WORK.

The demo is a real studio—not a slideshow.

Evaluate every current drawing tool, the node editor, metrology, quality control, Loupe, Boolean editing, and perspective correction. Save upgrade-compatible .polydemo projects, then open them in the Full edition when production exports matter.

DEMO EDITION$0
  • Up to 5 workspace images
  • 25 shapes / 4 classes / 4 groups
  • 2,500 × 2,500 px images
  • Watermarked viewport snapshots
  • 12 history entries
Download Demo

POLYTRACING STUDIO 2.2

Trace what you see.
Prove what you know.

Discover the complete workflow Talk to the product team →
